| M材質 | Inner Hardness | Surface Hardness | Heat Treatment |
|---|---|---|---|
| I.H內部硬度 | S.H表面硬度 | 熱處理 | |
| SKD61 | HRC43°±2° | HV1000°±100° | 氮化處理 Nitrided |
| HRC52°±2° | HRC52°±2° | 真空處理 Vacuumed |
| D | H | Catalog No. | ||
| Type | d | |||
| 3(6) | 4 | JH001 | 1 | -0.008 -0.018 |
| 6 | 1.5 | |||
| 2 | ||||
| 2.5 | ||||
| 3 | ||||
| 7 | 3.5 | -0.010 -0.020 |
||
| 8 | 6 | 4 | ||
| 4.5 | ||||
| 9 | 5 | |||
| 10 | 5.5 | |||
| 6 | -0.015 -0.022 |
|||
| 6.5 | ||||
| 11 | 7 | |||
| 13 | 8 | 8 | ||
| 14 | 9 | -0.018 -0.027 |
||
| 15 | 10 | |||
| 17 | 12 | |||
| 18 | 13 | |||
| 21 | 16 | |||
| 25 | 20 | |||
| 30 | 25 | |||
| D | H | Catalog No. | ||
| Type | d | |||
| 1/4 | 1/8 | JH002 | 3/64 | -0.018 -0.018 |
| 1/16 | ||||
| 5/64 | ||||
| 3/32 | ||||
| 1/8 | ||||
| 9/64 | -0.010 -0.020 |
|||
| 9/32 | 5/32 | 5/32 | ||
| 11/32 | 3/16 | 11/64 | ||
| 3/8 | 3/16 | |||
| 13/32 | 7/32 | |||
| 7/16 | 1/4 | -0.015 -0.022 |
||
| 1/4 | 9/32 | |||
| 1/2 | 5/16 | |||
| 9/16 | 1/4 | 11/32 | ||
| 5/8 | 3/8 | -0.018 -0.027 |
||
| 11/16 | 7/16 | |||
| 3/4 | 1/2 | |||
| 7/8 | 5/8 | |||
| 1' | 3/4 | |||

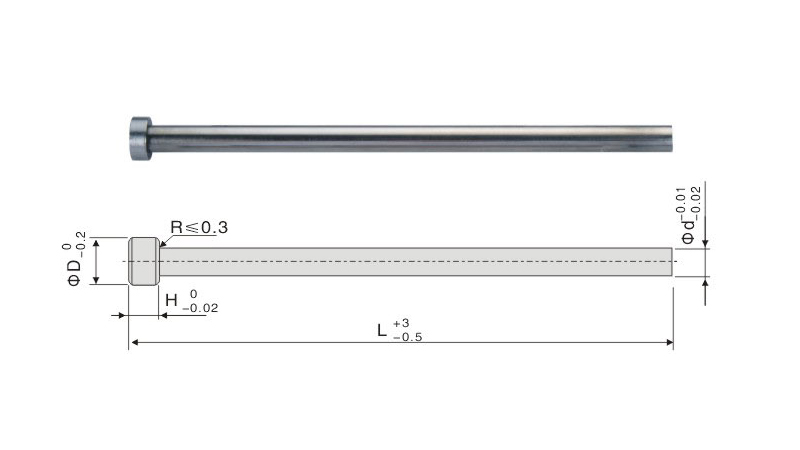

訂購：02-SKD61單節射梢 JH002
